Portable power distributor BSV P CEE 400V/16A FI , 1x CEE sockets, 2x protective contact sockets, CEE plug, cable 2m H07RN-F 5G2,5 black

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Power distributors

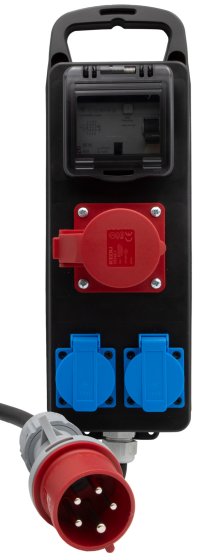

- Product image
Article number 1151468123
EAN 4007123313013
Article number 1151468123
EAN 4007123313013
Description

Description

  • Housing made of a special rubber compound for continuous load.
  • Extremely robust, impact resistant, age and weather resistant.
  • Suitable for stable wall mounting.
  • With ergonomically shaped carrying handle for convenient transport.
  • Oil resistant rubber cable for continuous outdoor use.
  • With RCD personal protection switch 30 mA for more safety.
  • Protective cover for fuses.
  • CEE plug 5-pin, 400V/16A (IP44).
  • 1 CEE socket 5-pin, 400V/16A (IP44).
  • 2 protective contact sockets 230V/16A with hinged covers.
RCD personal protection switch
RCD personal protection switch

A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.

Technical data

Technical data

  • Height: 10,50 cm
  • Length: 49 cm
  • Weight: 2 kg
  • Width: 16 cm
  • Nominal input voltage: 400 V
  • With carrying handle: Yes
  • Housing material: Plastic/ rubber
  • Number of CEE socket outlets total: 1
  • Number of socket outlets total: 3
  • Degree of protection (IP): IP44
  • Suitable for outdoor area: Yes
  • Cable designation: H07RN-F 5G2,5
  • Cable length: 2 m
  • Cable quality: Rubber-Neoprene, Rubber-Neoprene
  • Number of earthed socket outlets: 2
  • Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
Downloads

Downloads

All products are subject to technical changes
