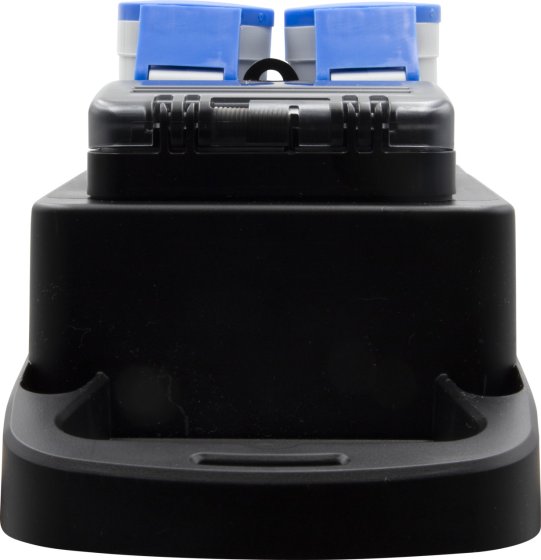

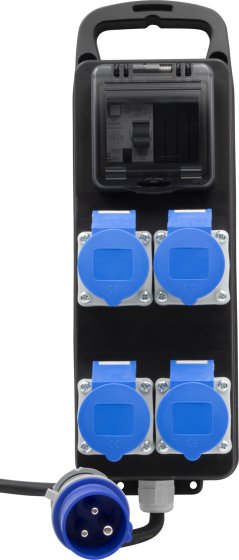

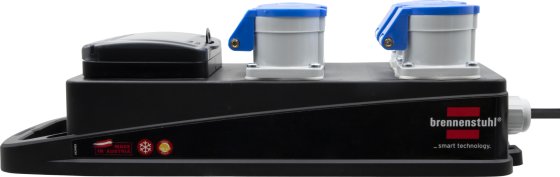

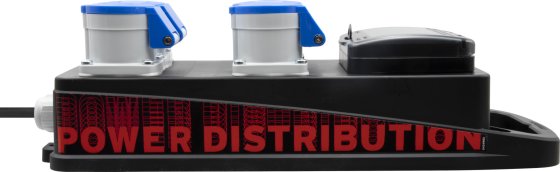

Portable power distributor BSV P CEE 230V/16A, 4x CEE sockets, CEE plug, cable 2m H07RN-F 3G2.5 black *IT*
Description
Description
- Housing made of a special rubber compound for continuous load.
- Extremely robust, impact resistant, age and weather resistant.
- Suitable for stable wall mounting.
- With ergonomically shaped carrying handle for convenient transport.
- CEE plug 3-pin, 230V/16A (IP44).
- 4 CEE socket 3-pin, 230V/16A (IP44).
RCD personal protection switch
A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
Technical data
Technical data
- Height: 12 cm
- Length: 42 cm
- Weight: 1,80 kg
- Width: 18 cm
- Nominal input voltage: 230 V
- With carrying handle: Yes
- Housing material: Plastic/ rubber
- Number of CEE socket outlets total: 4
- Number of socket outlets total: 4
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Cable designation: H07RN-F 3G2,5
- Cable length: 2 m
- Cable quality: Rubber-Neoprene
- Residual current circuit breaker (RCCB): FI with IFN 0.3 A
Downloads
Downloads
All products are subject to technical changes
