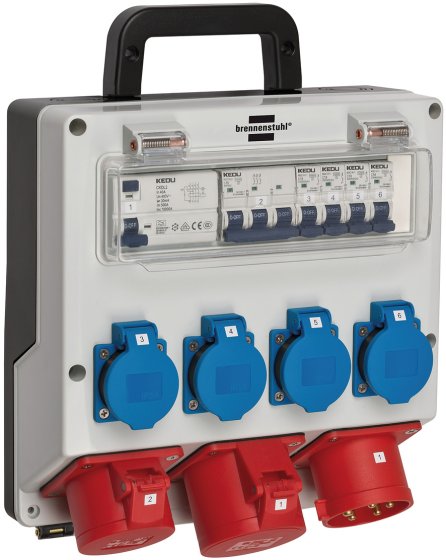

Portable wall-mounted distribution board 32A (power distribution board for wall mounting for construction site use and outdoor use IP44, with RCD personal protection switch)
Description
The extremely robust wall-mounted distributor is ideal for industrial and trade applications thanks to its break-proof and impact-resistant plastic housing. Thanks to its IP44 protection rating, the portable construction power distributor can be used outdoors without any problems (protected against foreign bodies and splash water). It can be easily attached to the wall and is also comfortable to carry in case of transport, thanks to ergonomically shaped carrying handle. A protective cover for the fuses and a RCD personal protection switch also ensures even more safety on construction sites. The construction power distributor also convinces with the following features:

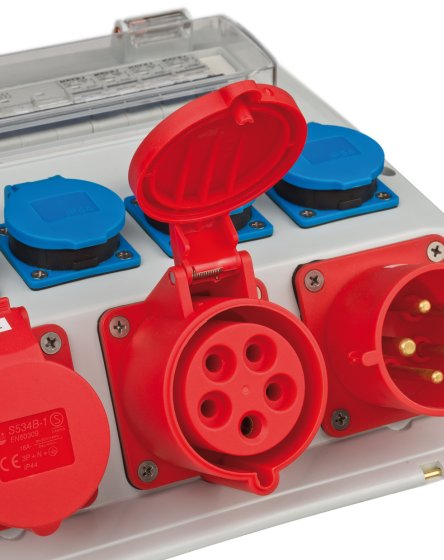

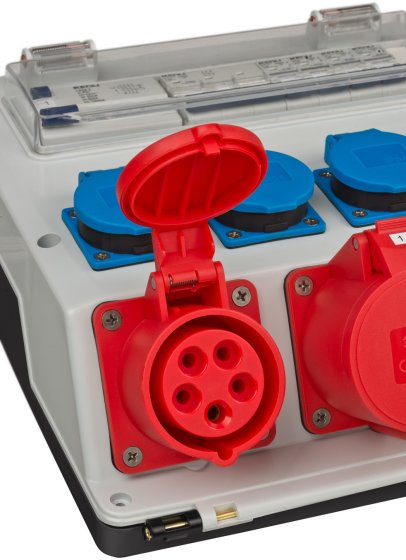

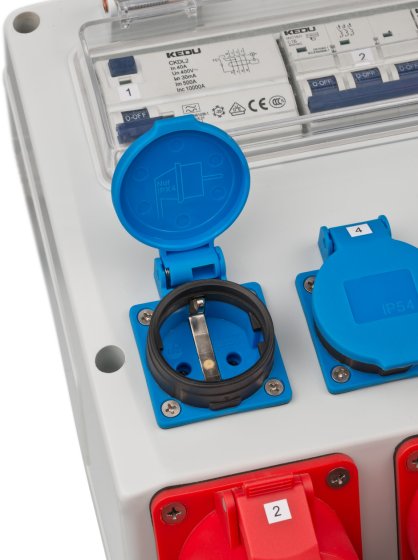

- Sockets: 1x CEE 400V/16A, 1x CEE 400V/32A, 4x 230V protective contact sockets.
- Input plug: CEE 32A 400V
- Wall-mounted distribution board with FI personal circuit breaker 30mA
- Construction power distributor with additional connection socket

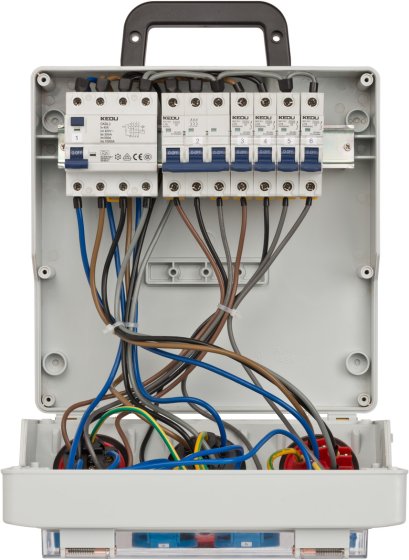

- Wired ready for connection

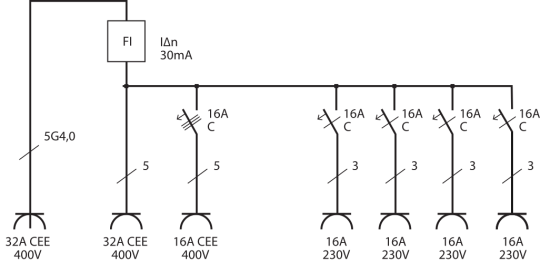

- Number of circuit breakers: 4x LS 230V/16A 1-pole; 1x LS 400V/16A 3-pole
A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
Technical data
- Height: 13 cm
- Length: 28 cm
- Weight: 3,46 kg
- Width: 34,90 cm
- Max. electr. load capacity: 22000 W
- Nominal input voltage: 400 V
- With carrying handle: Yes
- Housing material: Plastic
- Number of CEE socket outlets total: 2
- Number of socket outlets total: 6
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Number of earthed socket outlets: 4
- Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
