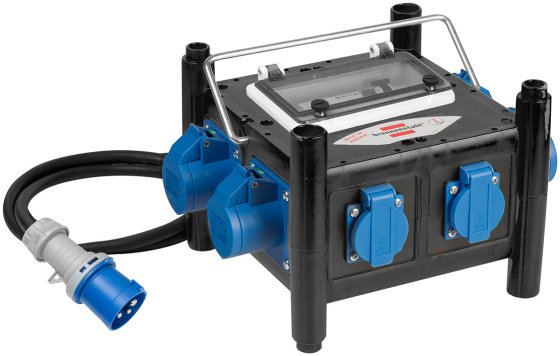

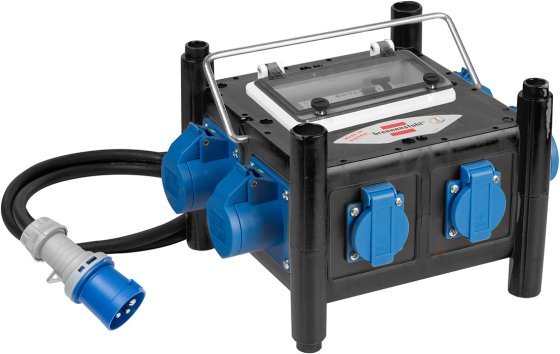

Compact power distributor BSV 3/16 IP44 FI + SI

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Power distributors
- Product image
Article number 1153668306
EAN 4007123292172
Article number 1153668306
EAN 4007123292172
Description

Description

  • Stackable, robust plastic housing, splash-water protected.
  • Sturdy metal carrying handle.
  • 2 m connecting cable H07RN-F 3G2,5, oil resistant rubber cable for constant outdoor use.
RCD personal protection switch
RCD personal protection switch

A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.

Technical data

Technical data

  • Height: 19 cm
  • Length: 32 cm
  • Weight: 3,50 kg
  • Width: 23 cm
  • Max. electr. load capacity: 3680 W
  • Nominal input voltage: 230 V
  • With carrying handle: Yes
  • Housing material: Plastic
  • Number of CEE socket outlets total: 4
  • Number of socket outlets total: 6
  • Degree of protection (IP): IP44
  • Suitable for outdoor area: Yes
  • Cable designation: H07RN-F 3G2,5
  • Cable length: 2 m
  • Cable quality: Rubber-Neoprene, Rubber-Neoprene
  • Number of earthed socket outlets: 2
  • Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
Downloads

Downloads

All products are subject to technical changes
