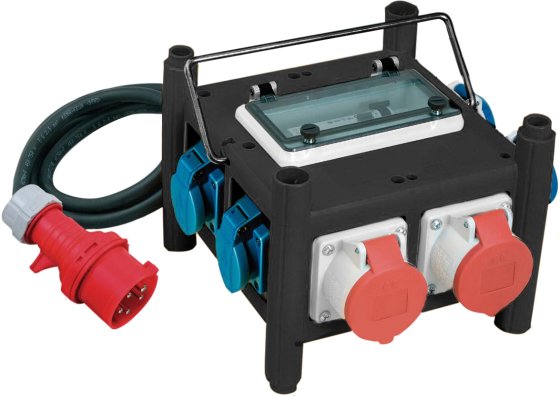

Compact power distribution BSV 3 - FI/16 IP44
Description
Description
- Stackable, robust plastic housing, splash-water protected.
- Sturdy metal carrying handle.
- Oil resistant rubber cable for permanent outside use.

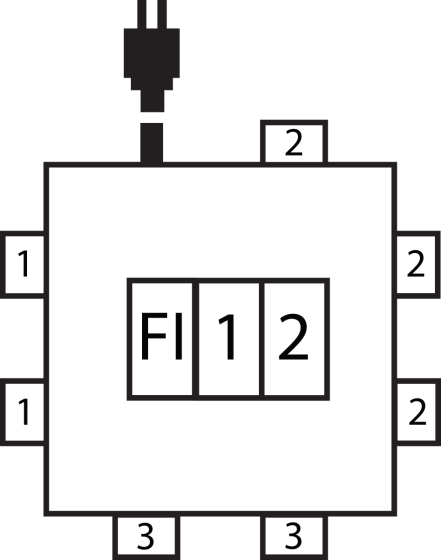

- 1 RCD circuit breaker and 2 automatic fuses.
- Earthed sockets with 2 different phases.
RCD personal protection switch
A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
Technical data
Technical data
- Height: 19 cm
- Length: 32 cm
- Weight: 3,70 kg
- Width: 23 cm
- Nominal input voltage: 400 V
- With carrying handle: Yes
- Housing material: Plastic
- Number of CEE socket outlets total: 2
- Number of socket outlets total: 7
- Degree of protection (IP): IP44
- Suitable for outdoor area: No
- Cable designation: H07RN-F 5G2,5
- Cable length: 2 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Number of earthed socket outlets: 5
- Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
