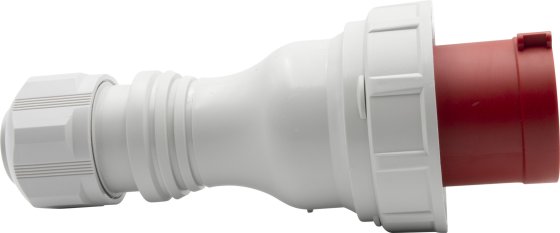

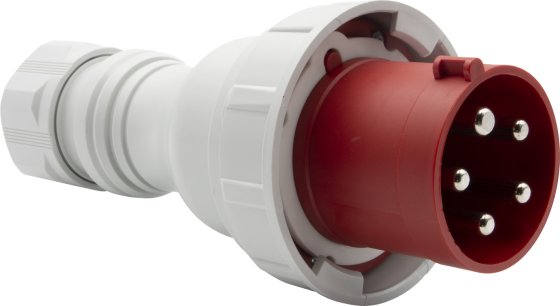

CEE socket 63A (power coupling 400V, 5-pin, splash-proof IP67)

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Plugs & sockets
- Product image
- Additional product image
- Additional product image
- Product image
- Additional product image
- Additional product image
Article number 1080160786
EAN 4007123315543
  • Robust CEE socket 63A with screw terminals, for difficult operating conditions
  • Power coupling IP67 (protected against foreign bodies and splashing water) with cap cover is ideal for outdoor use

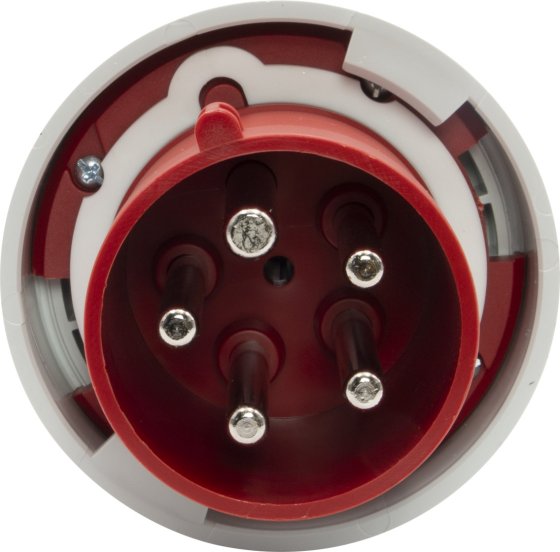

  • 5-pin CEE socket with high-quality housing
  • Easy assembly and smooth insertion and removal
  • Scope of delivery: 1x CEE-coupling 400V/63A - in best brennenstuhl® quality
Article number 1080160786
EAN 4007123315543

Description

Description

The robust 5-pin CEE coupling is ideally suited for outdoor use thanks to its IP44 protection class (protected against foreign bodies and splash water). In addition, the cee socket has the following convincing features:

  • With screw terminals, for difficult operating conditions
  • 400V/63A
Technical data

Technical data

  • Height: 11 cm
  • Length: 26,50 cm
  • Weight: 0,76 kg
  • Width: 11 cm
  • Max. current carrying capacity: 63 A
  • Nominal input voltage: 400 V
  • Housing material: Plastic
  • Degree of protection (IP): IP67
  • Area of use: Outdoor
Downloads

Downloads

Similar products

1080170786
CEE-Socket 400V/63A IP67

All products are subject to technical changes
