LED Power Spotlight "AREA Expert M17B" (LED technology, die-cast aluminum housing, 75W, 10850lm, 5700K, IP66, IK10)

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft LED floodlights

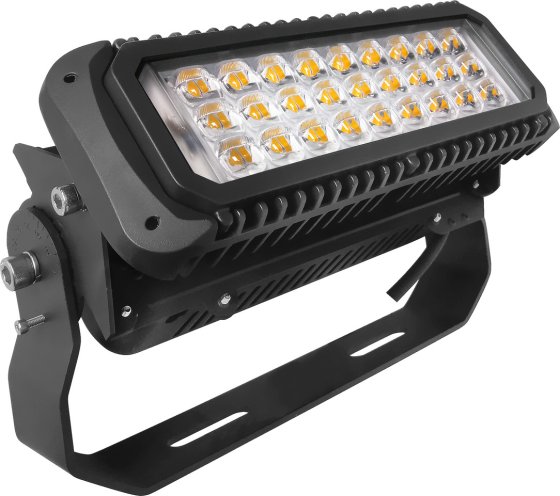

- Product image
Article number 1171810075
EAN 4007123313242
  • The black housing is made of die-cast aluminum with powder coating
  • The strong lockable bracket allows a secure and firm mounting
  • Equipped with the latest LED technology and individually adjustable LED panels
  • Very good illumination due to optimized beam angle (asymmetrical beam angle 130°x60°)
  • Scope of delivery: 1x LED power spotlight made of die-cast aluminum in the color black - in best quality from brennenstuhl®
- Icon Energy Efficiency
EU data sheet
Article number 1171810075
EAN 4007123313242
Description

Description

The LED power spotlight "AREA Expert M17B" is an extremely robust LED spotlight with 75W power, which meets the highest demands.
Thanks to a solid die-cast aluminum housing with powder coating, it is perfect for crane use. With 30% drive current on LED chips, for better heat dissipation and high efficiency. Especially the optimized beam angles provide strong illumination for large areas outdoors. Due to the very robust lockable bracket, the spotlights offer easy installation.
In addition, the spotlight convinces with the following features:

  • Protection class: IP66
  • Power: 75W
  • Luminous flux: 10850lm
  • With connection cable
  • Front panel: PC
  • Radiation angle: asymmetric 130x60°
  • Color rendering: CRI >80
  • Impact resistance (ball impact resistance): IK10
  • Dimensions without bracket HxWxD: 130x320x85mm
  • Life expectancy: over 50'000h
  • Color temperature: 5700K
Technical data

Technical data

  • Basic colour: black
  • Type of lamp: other
  • Housing material: Plastic/ metal
  • Nominal input voltage: 230 V
  • Degree of protection (IP): IP66
  • Height: 17,50 cm
  • Length: 21,40 cm
  • Weight: 3,10 kg
  • Width: 32,80 cm
  • Colour temperature: 5700 K
  • Nominal frequency: 50/60 Hz
  • Impact strength: IK10
  • Colour rendering index: 80
  • Energy efficiency class: E
  • Standby power: 0 W
  • Cable length: 1,40 m
  • Cable designation: H07RN-F 3G1,5
  • Cable quality: Rubber-Neoprene, Rubber-Neoprene
Downloads

Downloads

All products are subject to technical changes
