LED Spotlight JARO 3060 P (LED Floodlight for wall mounting for outdoor IP65, 20W, 2300lm, 6500K, with motion detector)

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft LED floodlights

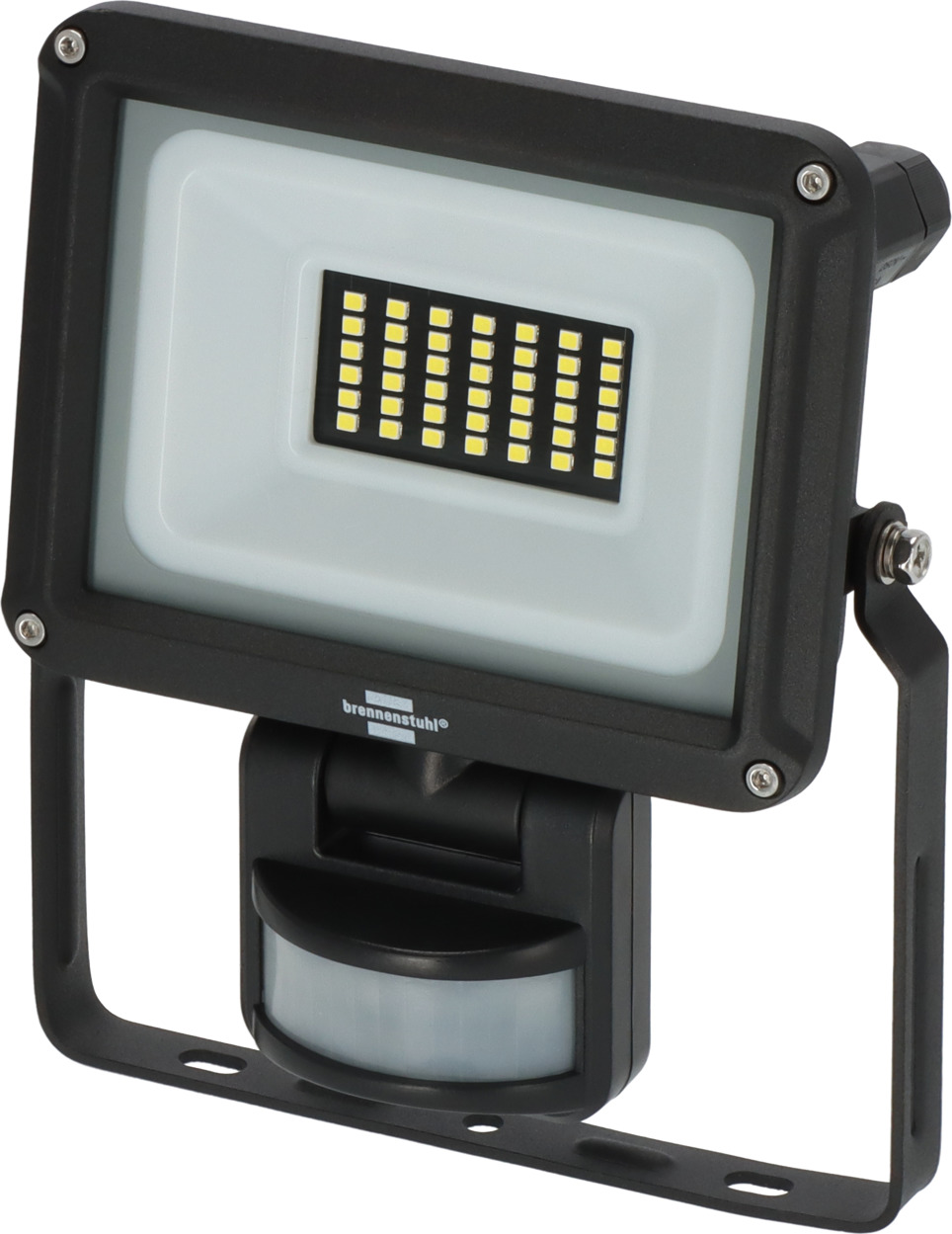

- LED floodlight JARO for wall mounting

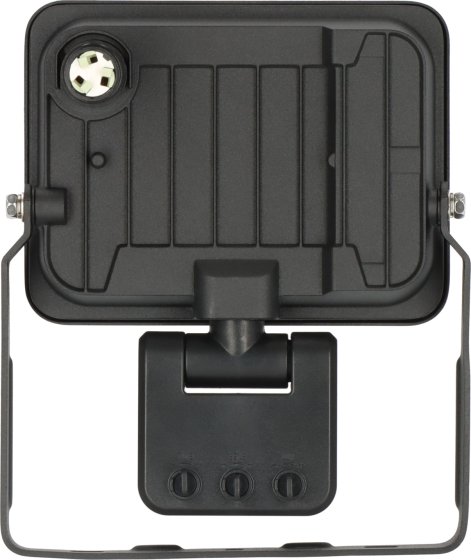

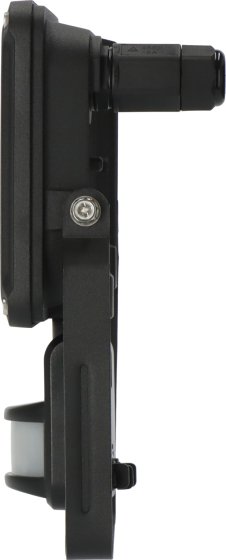

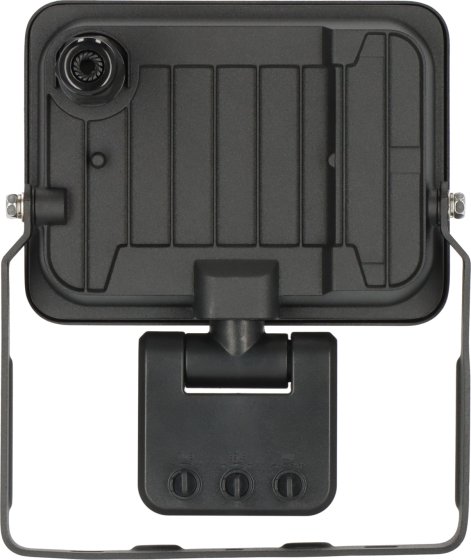

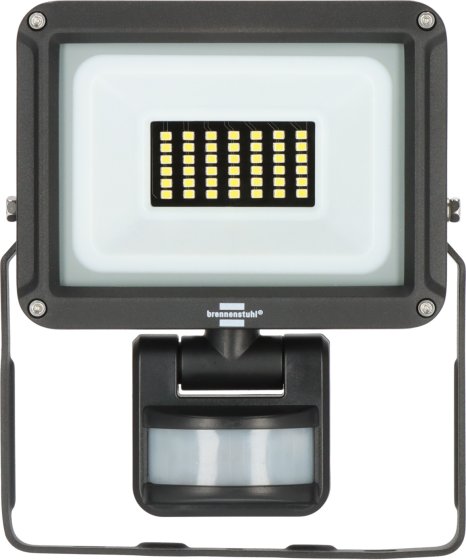

- Additional product image
- Additional product image
- Additional product image
- Additional product image
- Additional product image
- Additional product image
- Additional product image

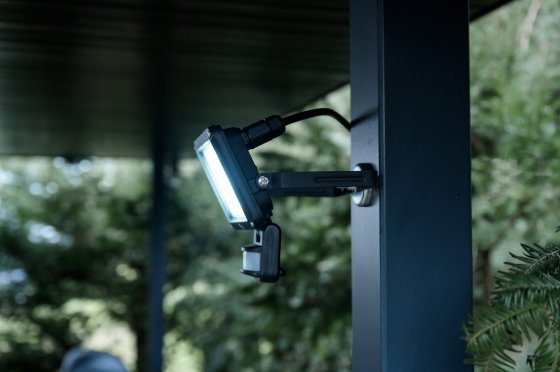

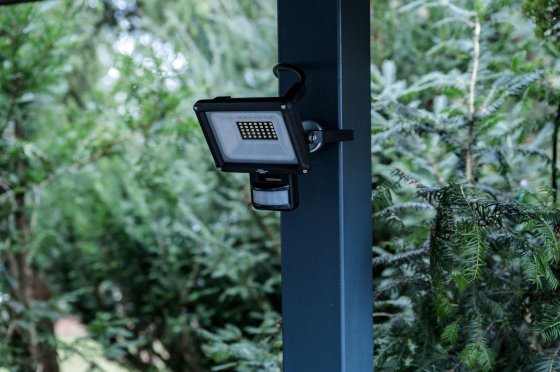

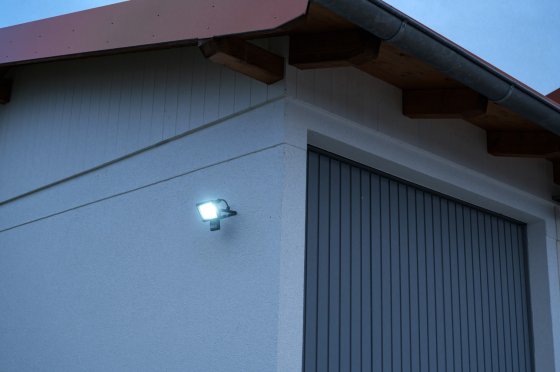

- Application image
- Application image
- Application image
- Application image
- LED floodlight JARO for wall mounting
- Additional product image
- Additional product image
- Additional product image
- Additional product image
- Additional product image
- Additional product image
- Additional product image
- Application image
- Application image
- Application image
- Application image
Article number 1171250242
EAN 4007123684960

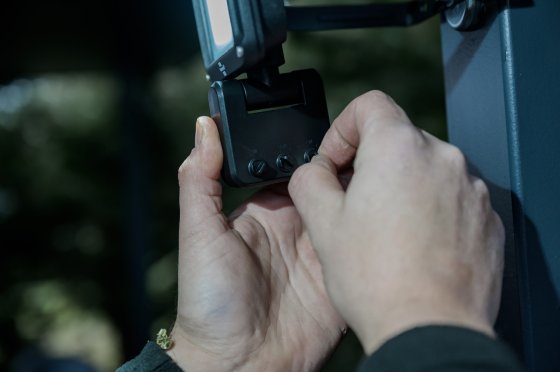

  • Super-bright LED Spotlight with motion detector: Detection range up to 10m (sensitivity adjustment possible), detection angle approx. 180°, switch-on time adjustable between 10 seconds to 5 minutes and twilight sensor - individually adjustable lighting
  • LED Floodlight with very bright Everlight SMD LEDs and extremely long service life - at the same time impact-resistant, maintenance-free and low heat generation

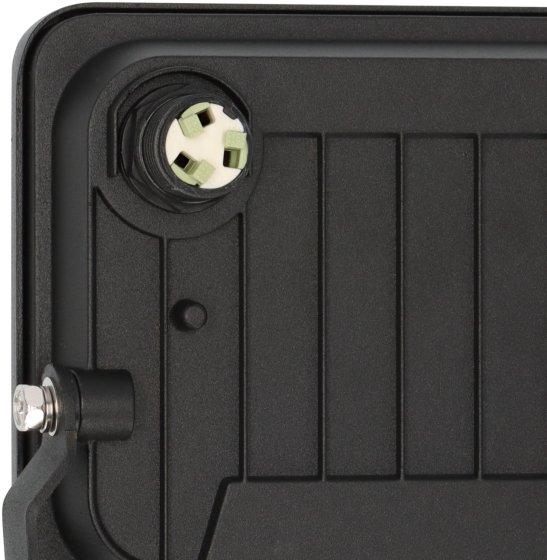

  • LED Security Light with tool-free connection via spring clips ensures user-friendly installation
  • LED Outdoor Spotlight with motion detector is ideal for automatically illuminating entrance areas, driveways or carports, as well as deterring burglary and theft - motion detector can be rotated horizontally and vertically
  • Energy-efficient LED Wall Light with 2300lm and a safety glass front panel for wide-area illumination
- Icon Energy Efficiency
EU data sheet
Article number 1171250242
EAN 4007123684960

Description

Description

The JARO 3060 P LED Spotlight for wall mounting is an extremely energy-efficient LED Floodlight with 20W power that meets the highest demands. With IP65 protection (dustproof and jet-proof) and a safety glass pane for additional impact protection, the Spotlight is suitable for both indoor and outdoor use. The motion detector with adjustable twilight switch can be rotated horizontally and vertically and automatically triggers light at a detection range of up to 10m and a 180° angle of coverage. The light duration can be adjusted as desired - from 10 seconds to approx. 5 minutes. The built-in Everlight SMD LEDs impress with their exceptionally long service life and their special light diffusion for large-area illumination. The infrared motion detector ensures ideal, automatic illumination of, for example, entrance areas, driveways or carports and thus serves to increase safety. In addition, the luminaire convinces with the following features:

  • Power: 20W
  • Luminous flux: 2300lm

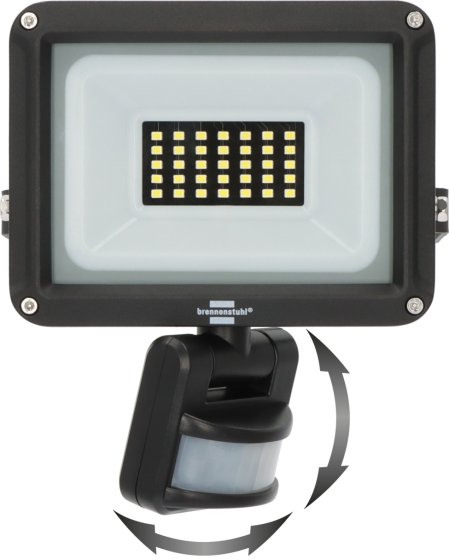

  • With infrared motion detector: rotatable, switch-on time adjustable
  • Front cover: made of safety glass
  • Colour temperature: 6500K
LED floodlight JARO for wall mounting
LED floodlight JARO for wall mounting

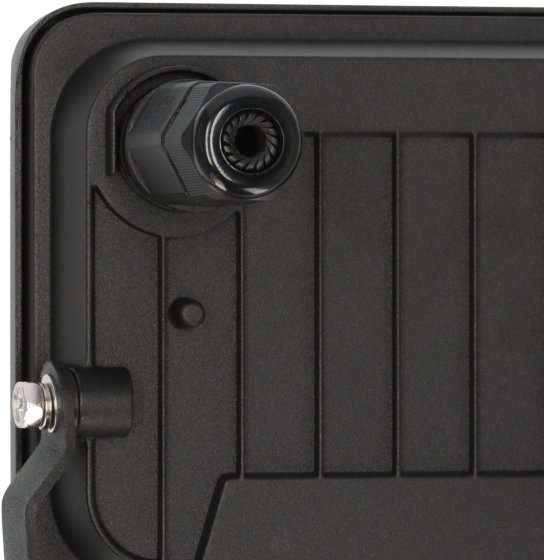

  • Easy mounting thanks to adjustable retaining bracket and external and at the same time waterproof spring-loaded clamp
Technical data

Technical data

  • Basic colour: black
  • Type of lamp: Floodlight
  • Housing material: Metal
  • Luminous flux: 2.300 lm
  • Protection class: I
  • Type of input voltage: Alternating voltage (AC)
  • Degree of protection (IP): IP65
  • Height: 18,30 cm
  • Length: 5 cm
  • Weight: 0,50 kg
  • Width: 15 cm
  • Coverage angle horizontal: 180 °
  • Max. transmission range frontally: 10 m
  • Max. duty cycle: 5 min
  • Nominal frequency: 50/60 Hz
  • Max. Nominal input voltage: 240 V
  • Min. Nominal input voltage: 220 V
  • Impact strength: IK08
  • Beam angle: 110 °
  • Colour rendering index: 80
  • Energy efficiency class: D
  • Standby power: 0,50 W
  • Lifetime (L70B50): 30000 h
  • Min. duty cycle: 10 s
Scope of supply

Scope of supply

LED floodlight JARO 3060 P with infrared motion detector

Downloads

Downloads

All products are subject to technical changes
