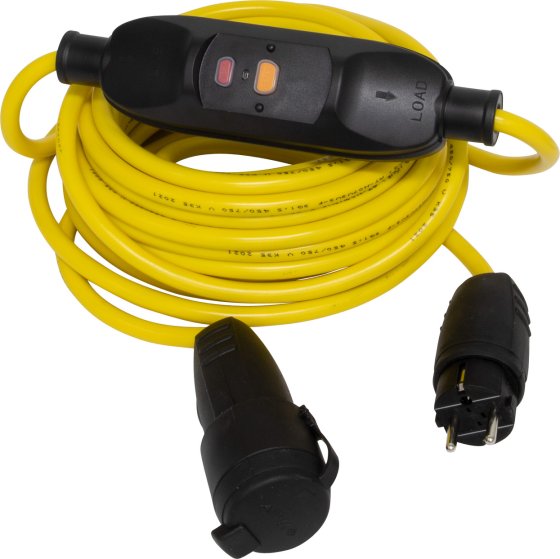

BREMAXX® Outdoor extension cable 10m (1.5m+8.5m cable in yellow, with FI intermediate circuit breaker, ideal power source in outdoor areas IP44, usable up to -35 ºC, oil and UV resistant)
Description
The BREMAXX® extension cable in yellow color with IP44 protection and a 10m (1.5m + 8.5m) cable length convinces with its quality and safety in all areas. The built-in FI intermediate circuit breaker ensures maximum safety. It is ideal for outdoor use and safe use in various works and also convinces with the following features:
- Cable designation: AT-N07V3V3-F 3G1.5
- Protective contact plug and socket with sealing cap
- Oil and UV resistant
A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
Technical data
- Cable designation: AT-N07V3V3-F 3G1,5
- Cable length: 10 m
- Cable quality: BREMAXX, BREMAXX
- With residual current circuit breaker (RCCB): Yes
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Height: 25 cm
- Length: 4 cm
- Weight: 1,80 kg
- Width: 25 cm
Downloads
All products are subject to technical changes
