Description
Description

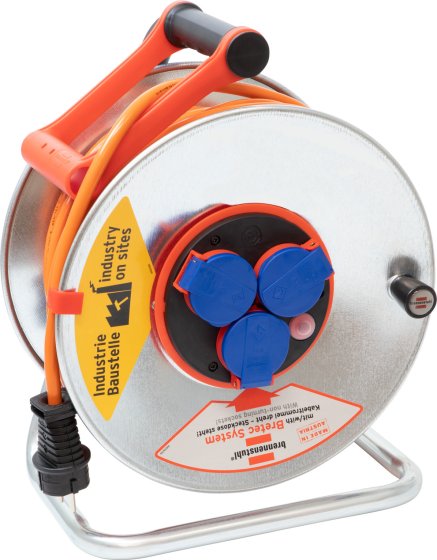

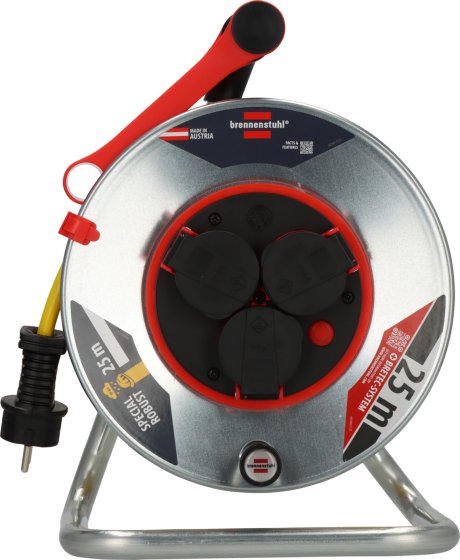

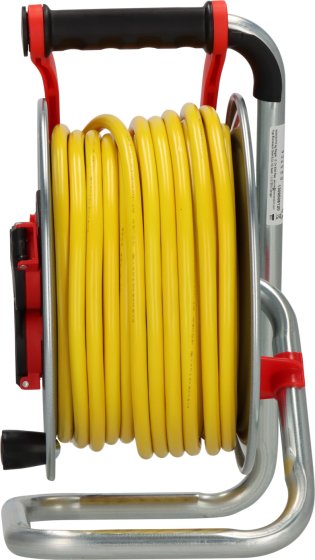

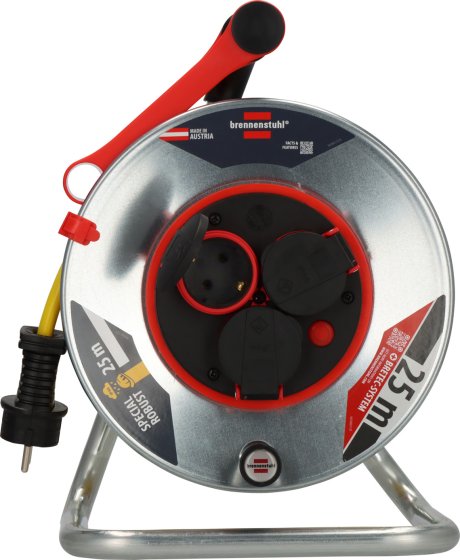

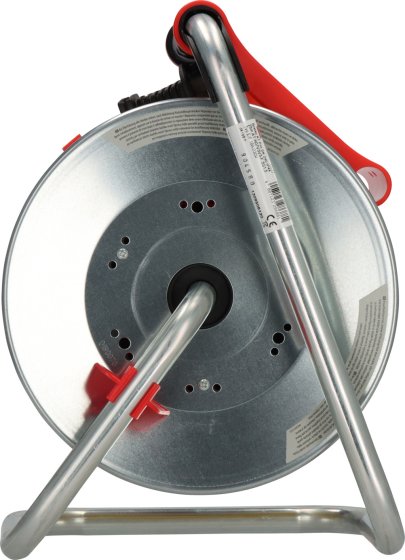

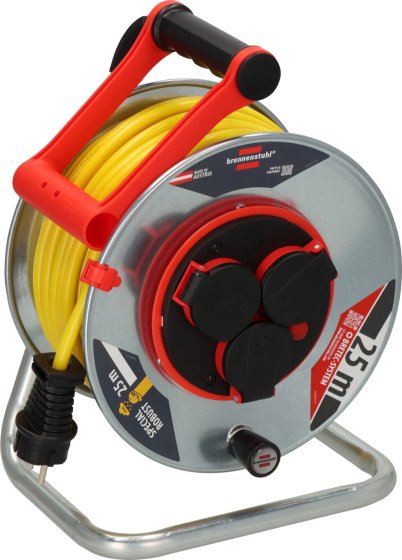

- The Bretec® rotary contact system enables the cable reel to be wound or unwound without twisting connected cables.
- Innovative "cablepilot" carrying handle for perfect cable management. Swivels to both sides for convenient carrying and hanging.
- Extra sturdy tubular steel frame with new, exclusive stability.
- Exceptionally robust carrying handle with convenient cable guide.
- Drum body made of sheet steel, galvanised to protect against rust, on extra sturdy carrying frame.
- Overheating protection, indicator light for overheating and overload.
- Earthing contact plug 230V/16A.
- 3 protective contact sockets 230V/16A with hinged cover.
Cablepilot
The "cablepilot" is a revolutionised cable reel handle that is equipped with useful features and makes reeling the cable much easier. Features include:
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel
- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug

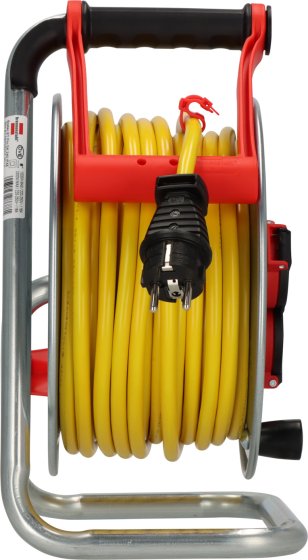

An additional feature of the "cablepilot" is the plug garage. Each "cablepilot" has a plug garage consisting of two holes on the carrying handle. After the cable has been rolled up, the plug can simply be put into the plug garage for safe storage.
Bretec® rotary contact comfort
Due to the rotary contact technology, only the Cable Reel rotates during unwinding and rewinding, not the insert. This allows the cable to be unwound even when the plug is connected to the supply point or when electrical appliances are connected, without their cables becoming twisted.
Technical data
Technical data
- Cable designation: AT-N07V3V3-F 3G1,5
- Cable quality: BREMAXX
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 37 cm
- Length: 19,60 cm
- Weight: 5,71 kg
- Width: 31,90 cm
- Cable length: 25 m
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3300 W
- With residual current circuit breaker (RCCB): No
- With Bretec: Yes
- Reel diameter: 290 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Sheet steel
- With plug storage: Yes
- Number of earthed socket outlets: 3
Downloads
Downloads
All products are subject to technical changes
