BAT SK cable reel 290, 1x CEE 230V/16A, 2x protective contact socket 230V/16A, 25m H07RN-F 3G2.5 black, IP44

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Cable Reels

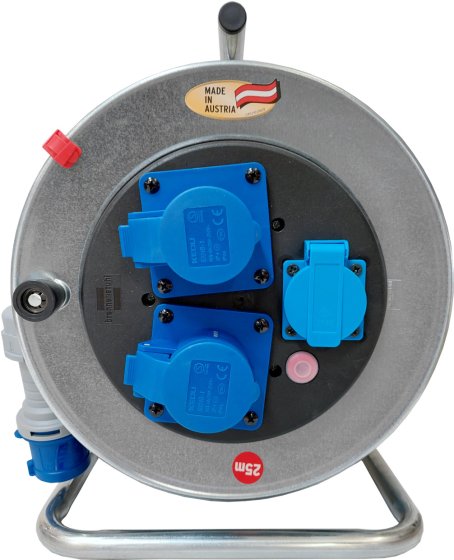

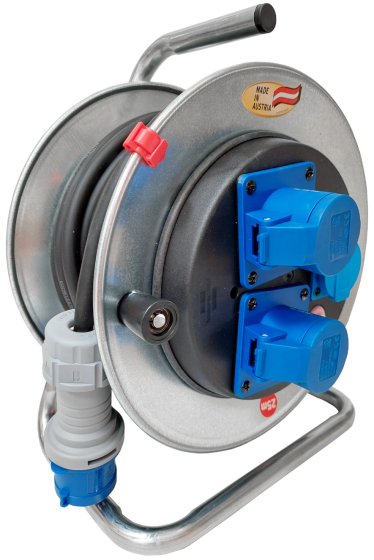

- Product image

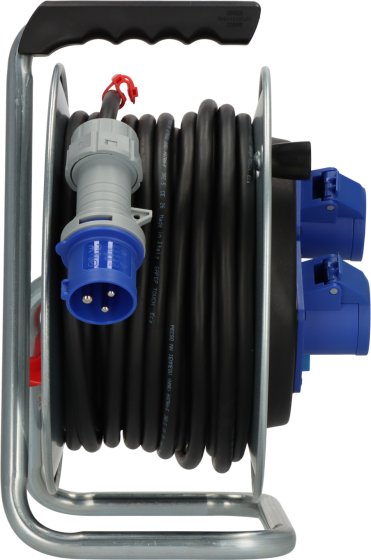

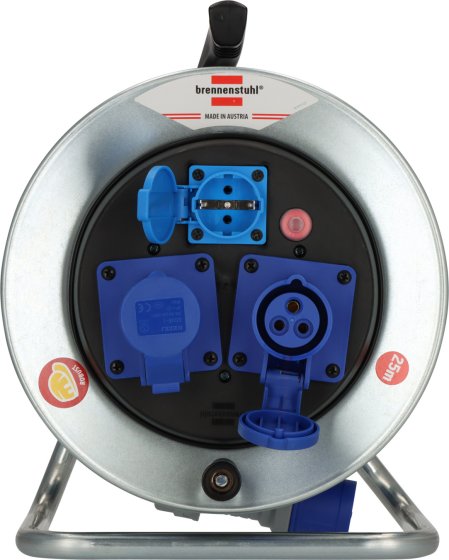

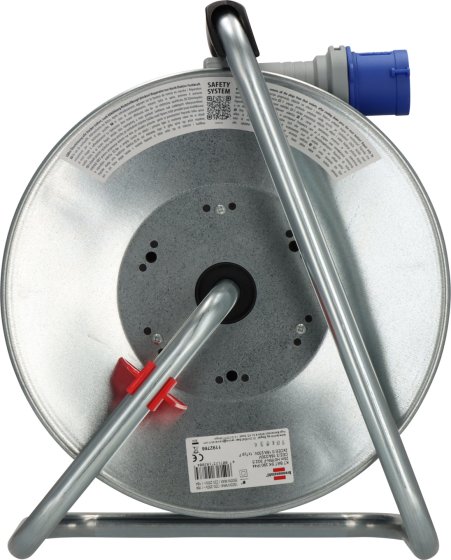

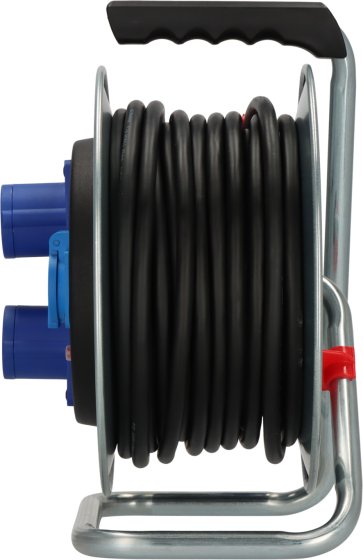

- Additional product image
- Product image
- Additional product image
Article number 1192766
EAN 4007123102884
Article number 1192766
EAN 4007123102884
Description

Description

  • Reel body made of sheet steel, galvanised to protect against rust, on particularly sturdy carrying frame.
  • Ergonomic handle with axle for perfect cable guidance during winding and unwinding.
  • Overheating protection, indicator light for overheating and overload.
  • CEE 3-pole plug, 230V/16A.
  • 2 CEE sockets 3-pole, 230V/16A.
  • 1 protective contact socket 230V/16A with hinged cover.
Technical data

Technical data

  • Cable designation: H07RN-F 3G2,5
  • Cable length: 25 m
  • Cable quality: Rubber-Neoprene
  • With residual current circuit breaker (RCCB): No
  • With Bretec: No
  • With CABLEPILOT: No
  • With carrying handle: Yes
  • Housing material: Sheet steel
  • With plug storage: No
  • Number of CEE socket outlets: 2
  • Number of earthed socket outlets: 1
  • Degree of protection (IP): IP44
  • Area of use: Outdoor
  • Height: 35,50 cm
  • Length: 23,40 cm
  • Weight: 7,10 kg
  • Width: 27,80 cm
  • Capacity in coiled state 230V: 1300 W
  • Capacity in uncoiled state 230V: 3500 W
  • Automatic cable winding: No
  • Reel diameter: 290 mm
Downloads

Downloads

All products are subject to technical changes
